Price:
19100,00 ৳

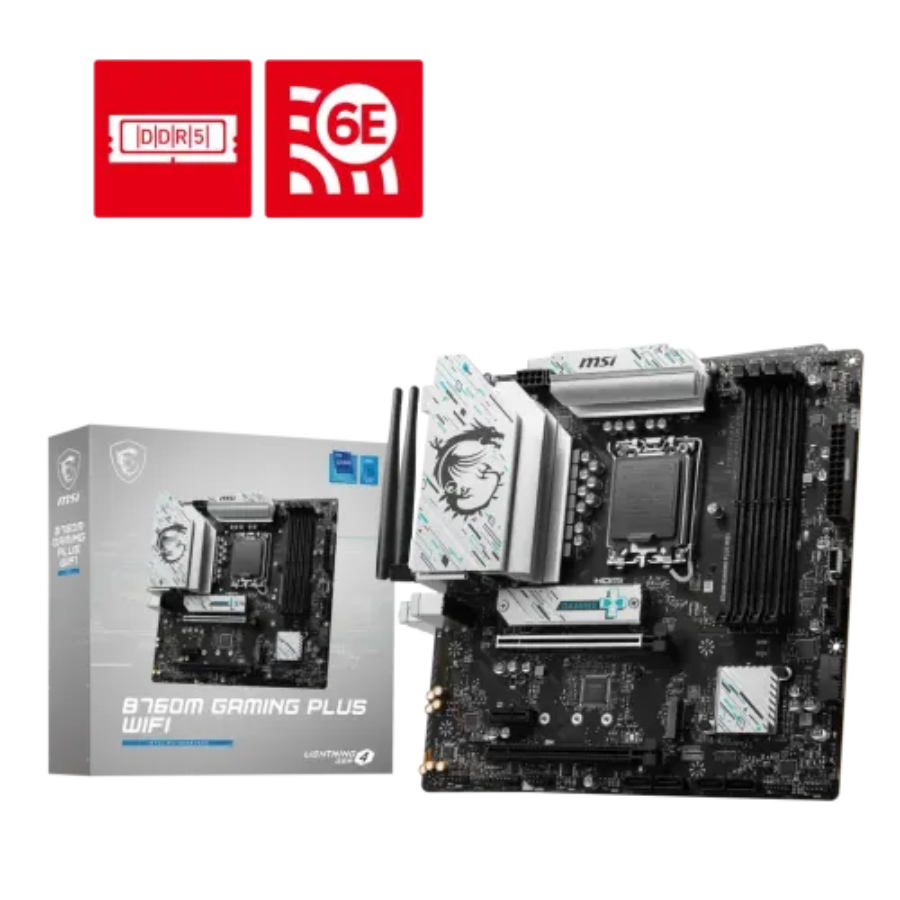

MSI B760M GAMING PLUS WIFI DDR5 MOTHERBOARD
Key Features
Model: B760M GAMING PLUS
Supported CPU: 14th/ 13th /12th Gen Intel Core / Pentium / Celeron processors (LGA 1700)
Supported RAM: 4x DDR5, Max 192GB, 6800+MHz (OC)
Graphics Output: 2x HDMI2.1
Features: Dual 2.5G LAN with latest Wi-Fi 6E, Dual DisplayPort1. 4
Specification
Basic Information | |
| Supported CPU | Supports 14th/12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 |
| Chipset | INTEL B760 |
| Form Factor | m-ATX 243.84mmx243.84mm |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
Expansion Slots | |
| PCI | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
Memory | |
| Type | DDR5 |
| Slots | 4 |
| Supported Memory | 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz |
| Maximum Memory | 192GB |
Graphics | |
| Graphics | 2x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz |
Connector & Ports | |
| Display Port (s) | 2x DisplayPort 1.4 |
| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen1 Type C (Front) 2x USB 3.2 Gen2 Type A (Rear) |
| LAN Port (s) | Realtek RTL8125BG 2.5G LAN |
| Wireless Communication module | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM |
| Supported Storage | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Audio | 7.1-Channel High Definition Audio |
| Internal I/O Ports | x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
Others | |
| Special Features | 1x EZ LED Control switch 4x EZ Debug LED 1x 2-Digit Debug Code LED |
Warranty Information | |
| Manufacturing Warranty | 3 years |
Description
MSI B760M GAMING PLUS WIFI 6E mATX Motherboard
The MSI B760M GAMING PLUS WIFI 6E mATX Motherboard is a flexible and high-performance option for enthusiasts and gamers alike. This motherboard provides a powerful and efficient computing experience by being compatible with 14th, 13th, and 12th Gen Intel Core, Pentium, and Celeron processors utilizing the LGA 1700 socket. Its four DDR5 RAM slots provide a maximum capacity of 192GB and an overclocking potential of 6800+MHz (OC), giving the speed and responsiveness required for demanding activities. The motherboard has two HDMI2.1 connections and delivers excellent graphics output, enabling the newest display technologies for a better visual experience. The presence of Dual 2.5G LAN, in conjunction with the most recent Wi-Fi 6E technology, offers smooth and high-speed networking, meeting the demands of online gaming and multimedia streaming. The MSI B760M GAMING PLUS WIFI 6E mATX Motherboard includes Dual DisplayPort 1.4, which increases display versatility and supports high-resolution visuals. This makes it an excellent solution for consumers that want a multi-monitor arrangement or high visual clarity. The MSI B760M GAMING PLUS WIFI 6E mATX Motherboard strikes a mix between performance and features, making it a good choice for gamers and people searching for a compact yet powerful system. This motherboard meets the diversified demands of modern computing by supporting the most recent technologies in networking and graphics output.
